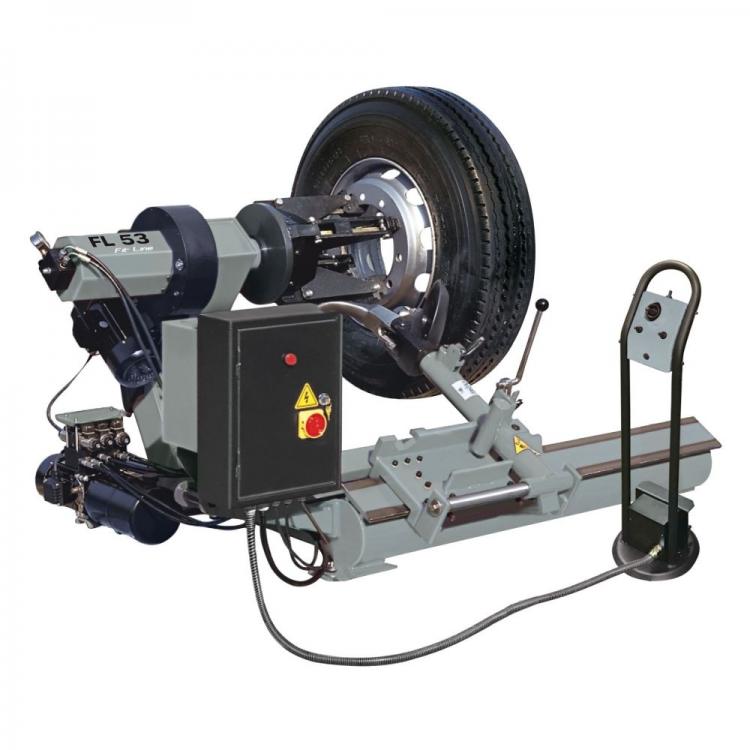

FIT LINE 53 ELECTRO-HYDRAULIC SEMI-AUTOMATIC COMMERCIAL TYRE MACHINE

Description

The FIT LINE 53 Electro-hydraulic truck tyre changer for demounting and mounting of trucks, buses and industrial vehicles tubed or tubeless wheels up to 26”.

Suited to medium or smaller operators including fleet operators that require a strong, reliable, and powerful commercial machine.

FL53 is invaluable in commercial operations where a small but ultra-reliable machine is needed, compact and lightweight and therefor ideal for the smaller operator

FEATURES AND BENEFITS

• Electro -hydraulic
• Single carriage movement
• Manual tool arm lift
• Manual tool head rotation
• Reinforced structure
• Grey colour
• Three phase

Specification

• Max tyre width 30”
• Max wheel diameter 59”
• Clamp capacity 14” to 26”
• Wheel centre hole 100mm
• 3 Phase 1.5Kw
• 1 speed motor (forward & reverse) 6 Rpm
• Maximum torque 2600Nm
• Bead breaker force 16,000 N
• Max wheel weight 700Kg
• Weight 498Kg

ADDITIONAL INFORMATION

The FIT LINE 53 by Sice is a light duty semi-automatic electro-hydraulic commercial tyre changer ideal for the lighter operator for tyres up to super single, built to the highest of standards as you would expect from this very well-respected manufacturer.

Single carriage movements, with manual lift and manual rotation of the tool head is standard on the FL53

S53 controls are cable connection to the lightweight but sturdy control station.
